TaFlux ZW 55 Series
General Information

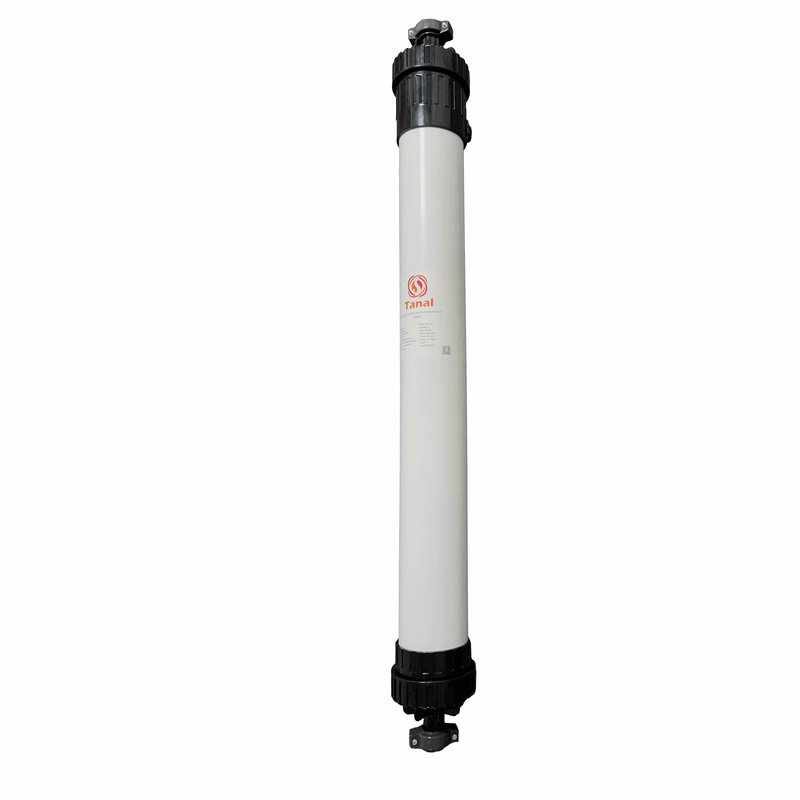

TaFlux ZW 55 series hollow fiber UF membrane is a pressurized membrane of hollow fibers, which is designed and manufactured for the filtration of surface water, potable water, seawater and industrial wastewater. These UF modules are made of new generation PVDF hollow fiber membrane with high fouling resistance and hydrophilicity.TaFlux ZW 55 series UF modules are applied in new systems, as well as directly connected to existing UF systems as replacements, providing high-quality filtrate by removing suspended solids, colloids, pyrogens, bacteria, viruses and other impurities to protect downstream processes.
Features
- Outside-to-inside flow direction
- New generation PVDF hollow fiber
- Uniform pore size of 0.02 μm
- Typical filtrate quality SDI ≤ 2.5, turbidity ≤ 0.1 NTU
Advantages
- High tolerance for feed water
- High-quality filtrate
- Less energy needed with high flux
- Longer service life by high fouling resistance and mechanical strength
- Economical equivalent module for direct replacement
Applications
- Surface water
- Potable water
- Industrial wastewater
- Reclaimed water reuse
- Pre-treatment of seawater desalination

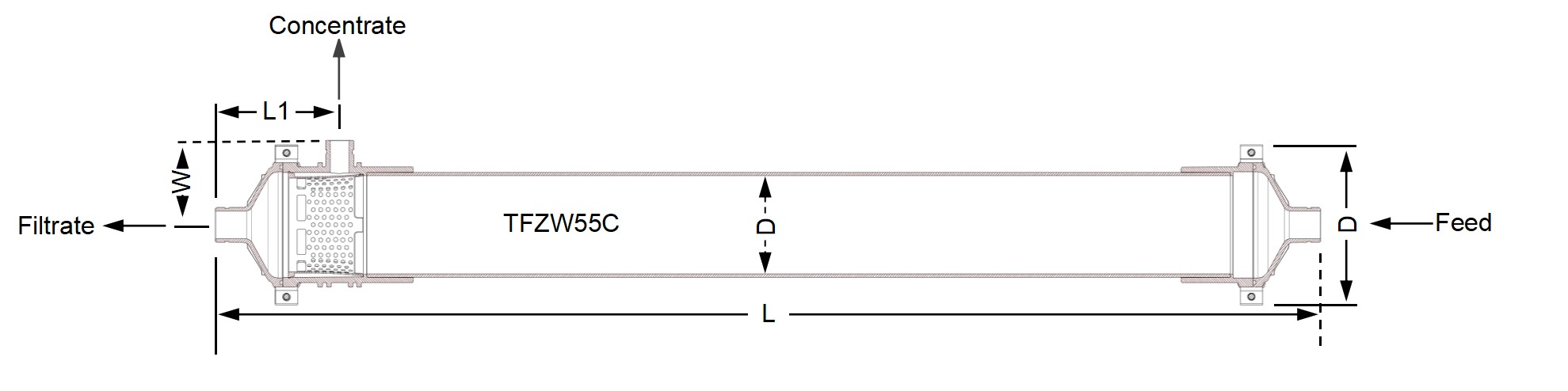

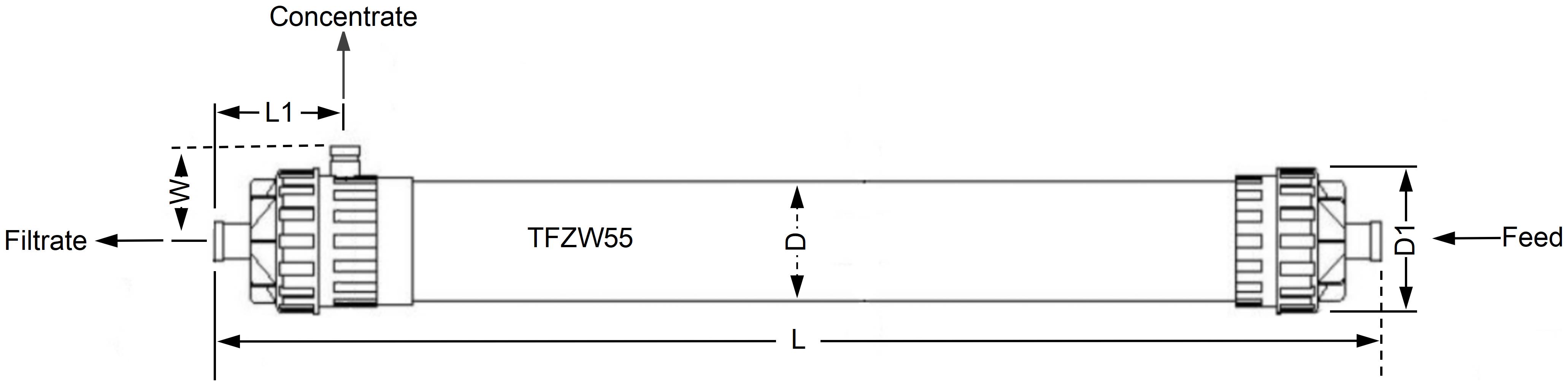

Module Dimensions
|
Model |
L |
L1 (mm/inch) |
D |
D1 (mm/inch) |
W (mm/inch) |
Feed/Filtrate port |
Concentrate port |
Joint type |
|
TFZW55* |
1,919/75.55 |
216/8.5 |
219/8.62 |
180/7.09 |
145/5.71 |
DN50 Victaulic |
DN40 Victaulic |
UPVC union |
|
TFZW55V |
SS clamp |
Specifications
|
Effective membrane area |
55.7 m² (600 ft²) |
|
Membrane material |
PVDF (Polyvinylidene Fluoride) |
|
Pore size |
0.02 μm |
|
Membrane surface properties |
Hydrophilic and non-ionic |
|
Fiber ID/OD |
0.65/1.2 mm (0.03/0.05 inch) |
|
Flow direction |
Outside-in |
|
Housing material |
UPVC |
|
Potting material |
Epoxy resin |
|
Wet weight filled with water |
32 KG (70.5 lbs) |
|
Shipping weight |
37 KG (80 lbs) |
Operating and Cleaning Limits
|
Type of operation |
Dead-end flow or cross flow |
|
Design flux (25°C) |
40 - 120 L/m2·h (24 - 71 gfd) |
|
Temperature |
1 - 40°C (34 - 104°F) |
|
Maximum feed pressure (20°C) |
4 bar (58 psi) |
|
Maximum trans-membrane pressure |
2.8 bar (40.6 psi) |
|
Backwash flux (25°C) |
32 - 120 L/m2·h (19.2-71 gfd) |
|
Maximum backwash pressure |
2.5 bar (36 psi) |
|
Maximum air scour feed pressure |
1.5 bar (21.8 psi) |
|
Air scour flow |
4-8.5 Nm3/hr (2.4 - 5 scfm) |
|
pH-Continuous operation @25°C |
2 - 11 |
|
pH-Cleaning @25°C |
2 - 12 |
|
Maximum NaClO |
1,000 mg/L |
|
Maximum feed TSS |
100 ppm |
|
Maximum feed turbidity |
300 NTU |
|
Maximum feed particle size |
300 µm |
|
Filtrate SDI15 |
≤ 2.5 |
|
Filtrate turbidity |
≤ 0.1 NTU |
