TaFlux UNA Pro Series (TIPS)
General Information

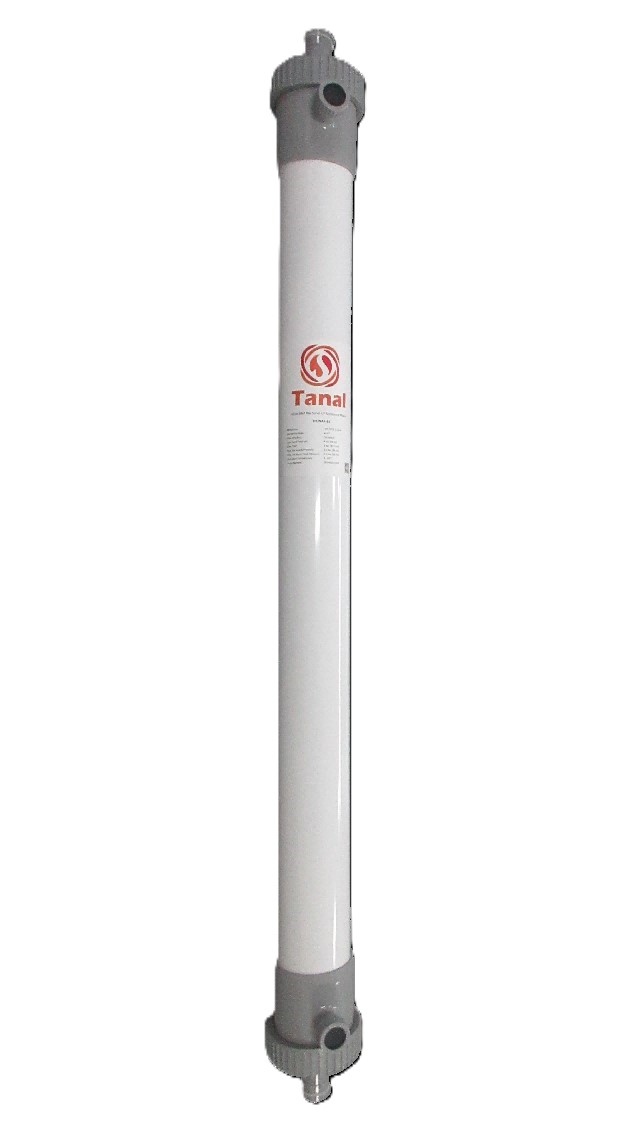

TaFlux UNA Pro series ultrafiltration (UF) membrane modules are pressurized integrated modules, which are designed and manufactured for the filtration of surface water, potable water, seawater, industrial wastewater and municipal sewage. These UF modules are made of upgraded new generation TIPS PVDF hollow fibers with extra permeability.
TaFlux UNA Pro series UF modules are applied in new systems, as well as directly connected to existing UF systems as replacements, providing high-quality filtrate by removing suspended solids, colloids, pyrogens, bacteria, viruses and other impurities to protect downstream processes.![](/pic/other/image/20240725/20240725162424532453.jpg)
Features
Outside-to-inside flow direction
New generation TIPS PVDF hollow fiber
Uniform pore size of 0.1 μm
Typical filtrate quality SDI ≤ 2.5, turbidity ≤ 0.1 NTU
Advantages
Upgraded design for easy installation
High-quality filtrate
Less energy needed by extra high permeability
Longer service life by high fouling resistance and mechanical strength
Direct and
economical module replacement
Applications
Surface water
Potable water
Beverage clarification
Reclaimed water reuse
Industrial wastewater
Pre-treatment of seawater desalination

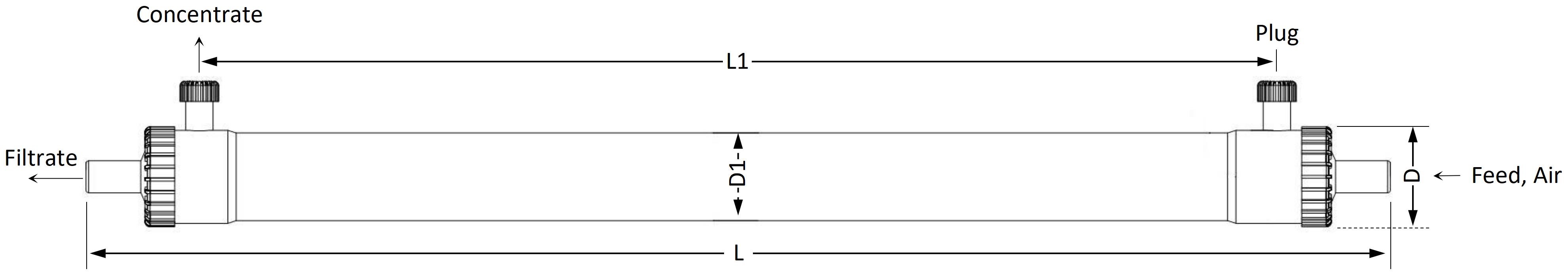

Module Dimensions
![](/pic/other/image/20240725/20240725164024592459.jpg)
Model |
L (mm/inch) |
L1 (mm/inch) |
D (mm/inch) |
D1 (mm/inch) |
Feed and Filtrate Connector |
Concentrate Connector |
TFUNAP-23 |
1314/51.7 |
806/31.7 |
215/8.5 |
165/6.5 |
ANSI 2" |
JIS 40A Union |
TFUNAP-50 TFUNAP-65 |
2418/95.2 |
1990/78.3 |
Specifications
Model |
TFUNAP-23 |
TFUNAP-50 |
TFUNAP-65 |
Effective membrane area |
23 m² (248 ft²) |
50 m² (539 ft²) |
65 m² (670 ft²) |
Volume |
49 L (13 gallon) |
53 L (14 gallon) |
53 L (14 gallon) |
Dry weight |
15 KG (33 lbs) |
30 KG (66 lbs) |
30 KG (66 lbs) |
Wet weight filled with water |
30 KG (66 lbs) |
60 KG (132 lbs) |
60 KG (132 lbs) |
Membrane material |
PVDF (Polyvinylidene Fluoride), TIPS |
||
Fiber ID/OD |
0.6/1.2 mm (0.02/0.05 inch) |
||
Flow direction |
Outside-in |
||
Pore size |
0.1 μm |
||
Housing material |
ABS |
||
Potting material |
Polyurethane |
Operating and Clenaing Limits
Type of operation |
Dead-end flow or cross flow |
Design flux (25°C) |
40 - 110 L/m2·h (24 - 65 gfd) |
Temperature |
1 - 40°C (34 - 104°F) |
Maximum feed pressure (25°C) |
4 bar (58 psi) |
Maximum trans-membrane pressure |
3 bar (43.5 psi) |
Backwash flux (25°C) |
80 - 120 L/m2·h (48 - 71 gfd) |
Maximum backwash pressure |
2.5 bar (36 psi) |
Maximum air scour feed pressure |
2.5 bar (36 psi) |
Maximum air scour flow |
4 - 12 Nm3/h (2.4 - 7.1 scfm) |
pH-Continuous operation @25°C |
1 - 10 |
Maximum NaClO |
2,000 mg/L |
Maximum feed TSS |
100 ppm |
Maximum feed turbidity |
300 NTU |
Maximum feed particle size |
300 µm |
Filtrate SDI15 |
≤ 2.5 |
Filtrate turbidity |
≤ 0.1 NTU |
