TaFlux AF Series

General Information

TaFlux AF series PES UF membranes are designed and manufactured as equivalent, which are used for production of process, potable water and wastewater. Major applications are the filtration of surface water, potable water, seawater and industrial wastewater. TaFlux AF series PES ultrafiltration membrane modules use naturally hydrophilic PES hollow fiber ultra-filtration membrane with excellent performance.
The mode of operation is feed-and-bleed with a minor cross flow or dead-end with regular backwash (with filtrate only) and chemically enhanced backwash.

TaFlux AF Series PES UF Membranes

Features

  • A nominal pore size of 0.02 μm
  • Microporous symmetric structure
  • New-generation naturally hydrophilic polyethersulfone membrane
  • High performance and very good anti-fouling characteristic
  • Typical filtrate quality SDI < 3, turbidity < 0.1 NTU
  • Membrane filtration provides 99.9999% (LOG 6) reduction of bacteria (pseudomonas diminuta) and 99.99% (LOG 4) reduction of virus (MS2 colifages) by mechanical means.

Advantages

  • High quality raw material
  • High thermal and chemical solvent resistance
  • High chemical tolerance for cleaning
  • Optimized design, high resistance to fouling
  • Economical equivalent PES UF membranes for direct replacement

Applications

  • Surface water
  • Potable water
  • Seawater desalination
  • Pre-treatment of industrial water
  • Industrial wastewater

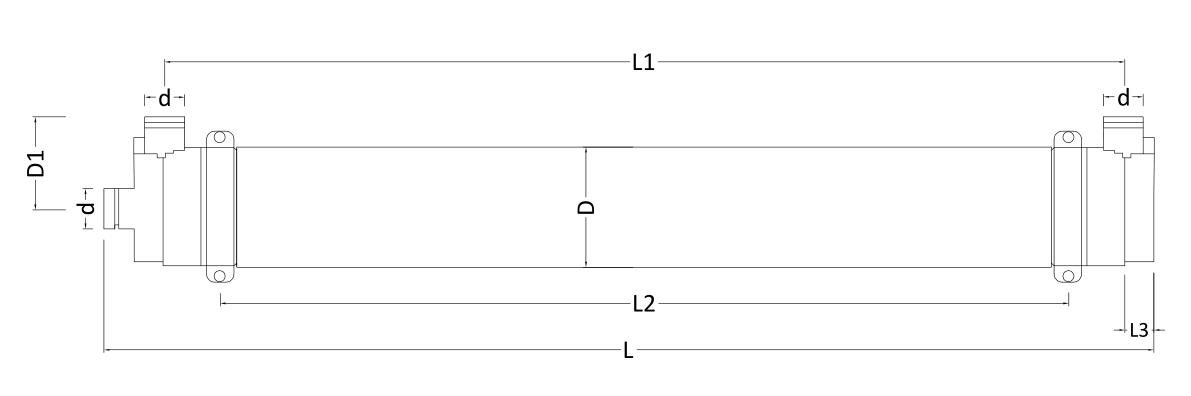

Module Dimensions

TaFlux AF Series PES UF Membranes Module Dimensions

Model

L (mm/inch)

L1 (mm/inch)

L2 (mm/inch)

L3 (mm/inch)

D

(mm/inch)

D1

(mm/inch)

Feed, Filtrate, Concentrate connection

d (mm/inch)

TFAF40

1,902/

74.88

1,742/

68.58

1,537.5/

60.51

55/2.16

200/7.9

166/6.5

73.2/2.88

TFAF55

220/8.66

TFAF64

Specifications

Model

TFAF40

TFAF55

TFAF64

Effective membrane area (m²/ft²)

40/430

55/590

64/689

Fiber inner diameter (mm/inch)

0.8/0.031

0.77/0.03

Membrane material

PES (polyethersulfone)

Housing material

PVC

Flow distributor material

PVC

Potting material

Polyurethane resin

Dry weight of membrane module

25 kg/55 lbs

34 kg/75 lbs

Wet weight filled with water

55 kg/121 lbs

66 kg/145 lbs

Operating and Cleaning Limits

Max. system pressure

300 kPa (43 psi)

Max. trans-membrane pressure

300 kPa (43 psi)

Max. backwash pressure

300 kPa (43 psi)

Temp. range

0-40℃ (32-104°F)

pH-Continuous operation @ 25℃

2 - 12

pH-CIP @ 25℃

1 - 13
