TaFlux TaCap Max Pro Series (TIPS)
General Information
TaFlux TaCap Max Pro series ultrafiltration (UF) membrane modules are pressurized modules, which are designed and manufactured for the filtration of surface water, potable water, seawater and industrial wastewater. These UF modules are made of new generation PVDF hollow fiber membrane with high fouling resistance and hydrophilicity.TaFlux TaCap Max Pro series UF modules are applied in flexible UF systems, providing high-quality filtrate by removing suspended solids, colloids, pyrogens, bacteria, viruses and other impurities to protect downstream processes such as NF and RO.
Features
Outside-to-inside flow direction
New generation TIPS PVDF hollow fiber
Uniform pore size of 0.08 μm
Typical filtrate turbidity ≤ 0.1 NTU
Bacteria removal ≥ 4 log
Advantages
Extra high tensile strength for longer service life
High tolerance for feed water
High-quality filtrate
Less energy needed for high flux
Longer service life by high fouling resistance and mechanical strength
Economical equivalent module for direct replacement
Applications
Surface water
Potable water
Beverage clarification
Industrial process water
Reclaimed water reuse
Industrial wastewater
Pre-treatment of seawater desalination

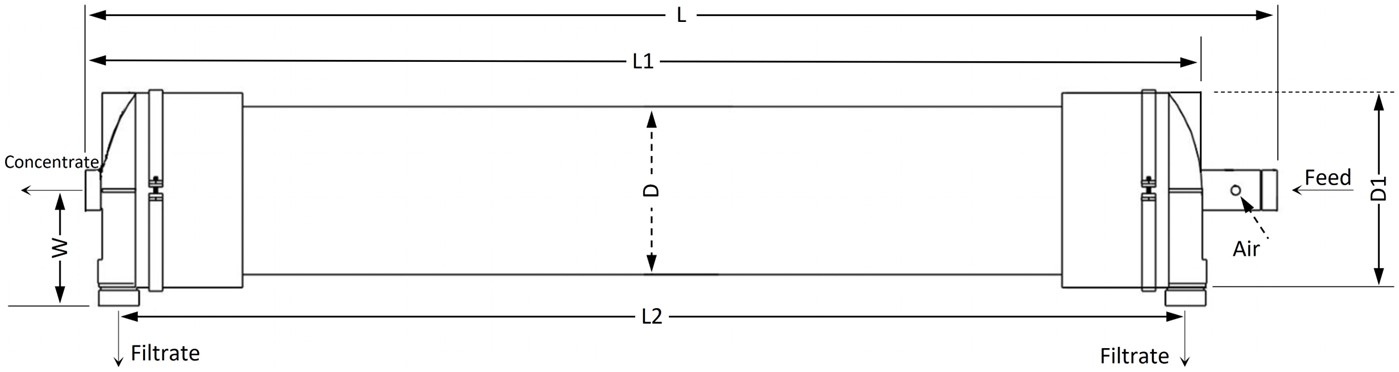

Module Dimensions
|
Model |
L (mm/in) |
L1 (mm/in) |
L2 (mm/in) |
D (mm/in) |
D1 (mm/in) |
W (mm/in) |
Connection port |
Air inlet |
|
TFMAXP52 |
1364.9/53.74 |
1257.3/49.5 |
1135.5/44.7 |
250/9.84 |
290/11.42 |
172/6.8 |
DN50 (2” Victaulic) |
3/8” FNPT |
|
TFMAXP78 |
1832.6/72.15 |
1724.7/67.9 |
1602.9/63.11 |
|||||
|
TFMAXP105 |
2340.6/92.15 |
2232.7/87.9 |
2110.9/83.11 |
Specifications
|
Model |
TFMAXP52 |
TFMAXP78 |
TFMAXP105 |
|
Effective membrane area (m²/ft²) |
52/560 |
78/840 |
105/1130 |
|
Filtrate flow rate m3/h (gpm) |
1.7 - 6.2 (7.5 - 27.3) |
2.7 - 9.3 (11.7 - 41) |
3.6 - 12.6 (15.7 - 55.5) |
|
Dry weight (KG/lbs) |
41/90 |
52/115 |
62/135 |
|
Wet weight filled with water (KG/lbs) |
73/161 |
100/220 |
118/260 |
|
Membrane material |
PVDF (Polyvinylidene Fluoride), TIPS |
||
|
Fiber ID/OD |
0.6/1.2 mm (0.024/0.047 inch) |
||
|
Flow direction |
Outside-in |
||
|
Pore size |
0.08 μm |
||
|
Housing material |
UPVC |
||
|
Potting material |
Epoxy resin |
||
Operating and Cleaning Limits
|
Type of operation |
Dead-end flow or cross flow |
|
Typical flux (25°C) |
34 - 120 L/m2·h (20 - 71 gfd) |
|
Temperature |
1 - 40°C (34 - 104°F) |
|
Maximum feed pressure (20°C) |
5 bar (73 psi) |
|
Maximum feed pressure (40°C) |
3 bar (44 psi) |
|
Maximum trans-membrane pressure |
2 bar (30 psi) |
|
Maximum air scour feed pressure |
2.5 bar (36 psi) |
|
Air scour flow |
12.3 - 15.4 Nm3/h (7.3 - 9.1 acfm) |
|
Air scour duration |
2 - 4 minutes |
|
Air scour frequency |
Once every 20 - 60 minutes |
|
pH-Continuous operation @25°C |
2 - 11 |
|
pH-Cleaning @25°C |
1 - 13 |
|
Maintenance cleaning frequency |
1 - 3 times per day |
|
Maintenance cleaning duration |
20 - 30 minutes |
|
Disinfection chemicals |
NaClO, ClO2 or NH2Cl |
|
Cleaning chemicals |
NaOH, HCl, H2SO4 or citric acid |
|
Instantaneous chlorine tolerance |
5,000 ppm |
|
Maximum chlorine exposure |
750,000 ppm-hrs |
|
Maximum feed TSS |
100 ppm |
|
Maximum feed turbidity |
300 NTU |
|
Maximum feed particle size |
300 µm |
|
Filtrate SDI15 |
≤ 2.5 |
|
Filtrate turbidity |
≤ 0.1 NTU |
